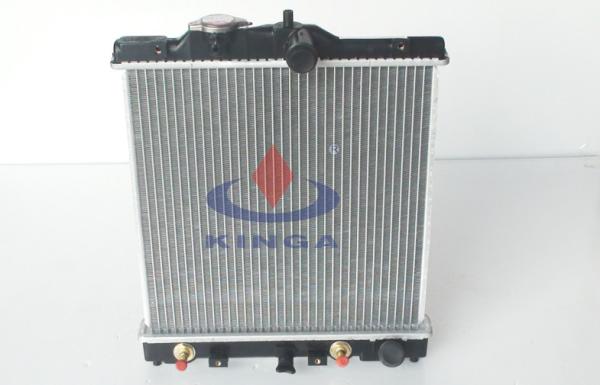

    1993 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 honda civic radiator , Aluminum auto radiator

    Ask Lasest Price
    Brand Name : KINGA
    Certification : ISO / TS 16949
    Model Number : KJ-17047-PA16
    Price : Negotiation
    Delivery Time : 45 Days
    Payment Terms : T/T L/C
    Supply Ability : 600,000 PCS / Year
    • Product Details
    • Company Profile

    1993 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 honda civic radiator , Aluminum auto radiator

    1993 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 honda civic radiator , Aluminum auto radiator


    Item Specifications


    Manufacturer Part NumberKJ-17047
    OEM19010-P30-901 , 19010-P03-902 , 19010-P28-G51 , 19010-P28-G52
    Car TypeCIVIC ' 1992 , 1993 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 ,
    Carton Size720 * 110 * 510 mm
    TransmissionAT
    Thickness16 mm
    Oil coolerΦ 19 * 200
    Core Size350 * 348 * 16 mm
    Tank Size33 / 48 * 372 mm
    Core MaterialAluminum
    DPI1290
    Tank MaterialPlastic

    More Information


    KJ-17047-PA16CIVIC'92-00 EK3/EG8PA16/AT
    KJ-17048-PA16CIVIC'92-00 EK3/EG8PA16/MT

    Question & Answer

    20GP container about 450pcs
    40HQ container about 1050pcs
    Warranty:12 months


    Structure Chart


    Brazed Radiator Structure
    1. Filler Neck8. Side Plate15. KINGA Logo
    2. Top Header Plate9. Core Height16. Bottom Header Plate
    3. Inlet Pipe10. Fin17. Water switch
    4. Top Tank11. Tube18. Bottom Tank
    5. Top Mounting Pins12. Core Width19. Oil Cooler
    6. Fan Mount13. Core Thickness20. Outlet Pipe
    7. Overflow Pipe14. Clip




    Packing



    Packaging design according to customer requirements.


    NOTICE


    1. Compare your radiator to the picture below

    2. Flush the entire cooling system of the vehicle.

    3. Use the astm-approved antifreeze and distilled or de-ionized water.


    Quality 1993 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 honda civic radiator , Aluminum auto radiator for sale
